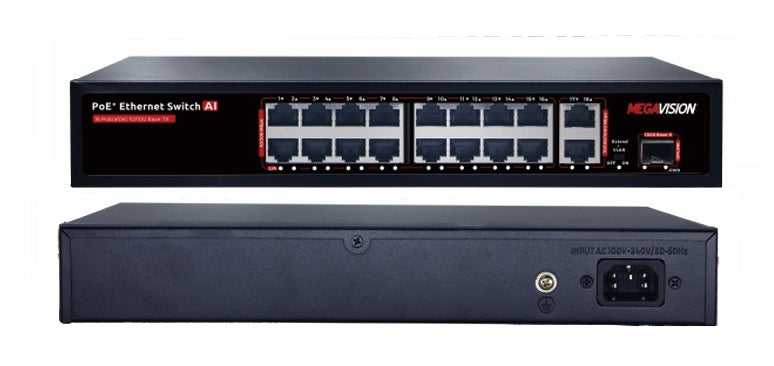

MV-PS0016EP-2G-SG (16port)

16-Port 10/100Mbps, 2-port 10M/100M/1000M and 1-port 1000Base-X IEEE 802.3af/at/u/ab/az PoE Switch (End-Span PSE)

Features

• Comply with IEEE802.3, IEEE802.3ab/u/az, IEEE802.3af/at standards
• Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
• 16-Port support 48V-56V DC power to PoE powered devices
• Provide 15.4W or 30W power to powered devices
• 200-watts PoE budget
• Built-in 53V/3.8A switching power supply
• Extra 2-Port 10/100/1000Mbps UPLINK RJ-45 port and 1x 1000Mbps fiber SFP Uplink port
• PoE data & power transmission distance up to 100meters
• Port based VLAN for Enhancing Security
• Backplane Bandwidth: 9.2 Gbps
• Excellent anti-thunder, anti-static and anti-interference ability
• Surge Protection: 4KV
• Easy and convenient to use, plug & play, no need to configure
• Galvanized housing for stable and durable working life
